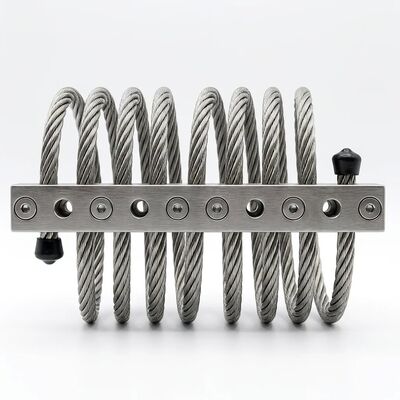

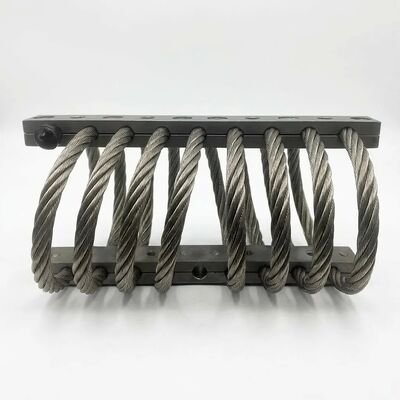

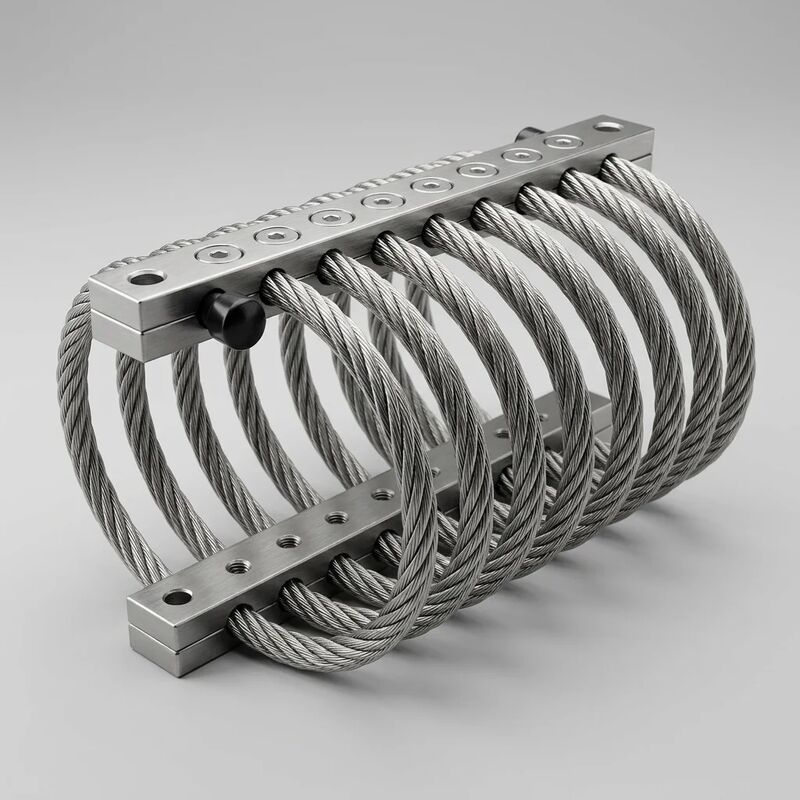

Wire Rope Vibration Isolator JGX-0958D-149A Low-Profile Universal Mount for Compact Equipment Vibration Damping

Why Low-Profile Design Matters in Vibration Isolation

• Low-Profile Engineering: The slim-form architecture reduces the installed height envelope while retaining the full 8-coil multi-helical wire rope damping core. This is achieved through an optimized coil winding pitch and a compact clamping bar geometry—not through compromised material volume or reduced coil count. The result: identical damping bandwidth and load capacity to taller equivalents, in a footprint that fits where conventional isolators cannot.
• Universal Mounting Flexibility: The symmetric bar interface supports base-mount, ceiling-mount (inverted), wall-mount (lateral), and custom bracket configurations without performance derating. Mounting hole patterns follow ISO metric standards (M10 clearance), ensuring compatibility with DIN, JIS, and ANSI structural frameworks. This single SKU replaces multiple orientation-specific part numbers across a diverse equipment portfolio.
• Premium-Grade Vibration Absorption: Despite the reduced profile, the cold-drawn AISI 316L wire rope core—identical in material specification to the full-height series—delivers the same hysteresis-based energy dissipation. Independent validation confirms ≤5% deviation in transmissibility curves between the low-profile JGX-0958D-149A and its standard-profile counterpart across the 10–2000 Hz test range.
