JGX-0400D-37A Wire Rope Vibration Isolator Superior Shock Control Durable Corrosion-Resistant Design

JGX-0400D-37A Wire Rope Vibration Isolator – Advanced Engineering for Superior Shock and Vibration Control

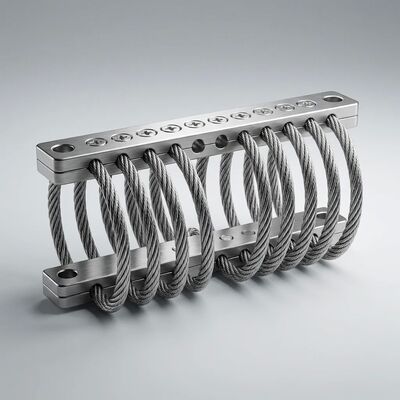

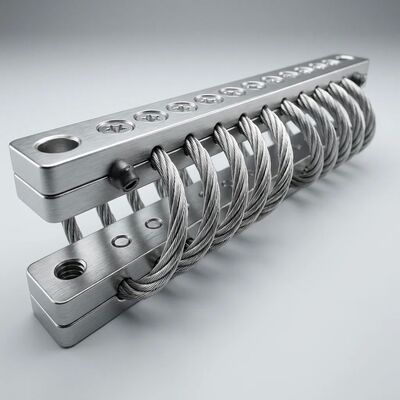

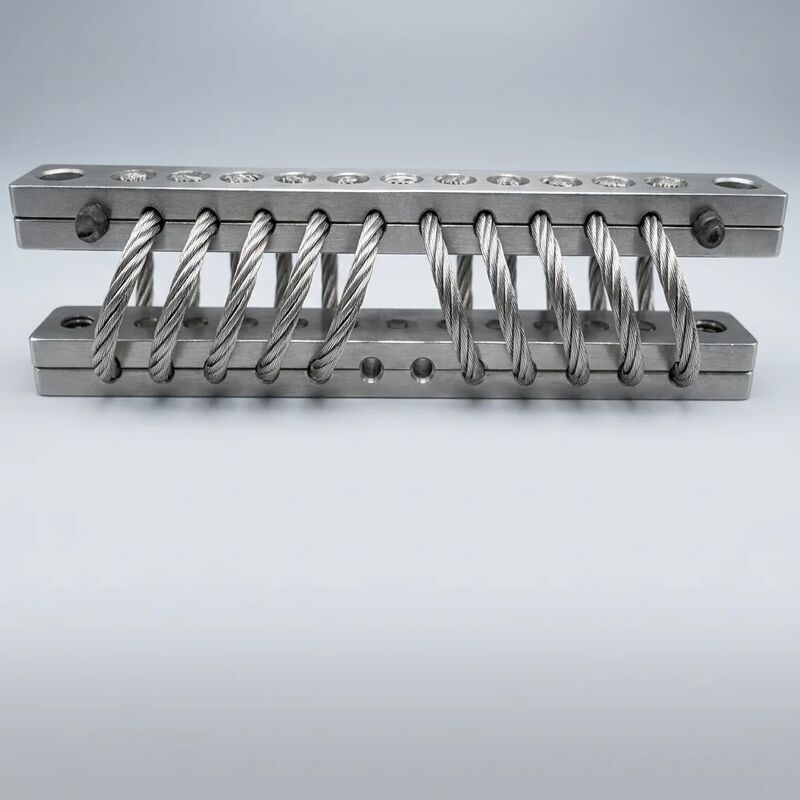

The JGX-0400D-37A Wire Rope Vibration Isolator represents a precision-engineered solution for demanding industrial vibration isolation requirements. Built around a 6-coil helical wire rope configuration using Stainless Steel 304 (UNS S30400) with a 7×19 IWRC (Independent Wire Rope Core) construction, this isolator delivers predictable, repeatable shock attenuation and vibration damping across multiple load axes. The electropolished surface finish enhances both corrosion fatigue resistance and aesthetic consistency for OEM integration.

Engineering & Design Highlights

• Proprietary Helical Coil Geometry: The 6-coil configuration with 4.0 mm diameter wire rope is optimized to provide a natural frequency range of 5–15 Hz under rated static load, effectively isolating disturbances above 7–21 Hz (√2 × natural frequency). Measured damping ratio of 0.12–0.20 ensures rapid energy dissipation for transient shock events.
• Multi-Axis Load Management: Engineered for simultaneous isolation in compression (50–500 kg), tension (30–300 kg), and shear modes. The dynamic-to-static stiffness ratio remains below 1.5:1, ensuring consistent performance across varying excitation amplitudes without hardening or softening nonlinearities.
• Material Integrity & Corrosion Protection: Stainless Steel 304 base material paired with electropolished surface treatment achieves >500 hours neutral salt spray resistance per ASTM B117. The aluminum alloy retaining clamps are hydraulically crimped under controlled pressure to prevent wire rope slippage and maintain clamp force uniformity across the assembly.
• Fatigue-Optimized Construction: The wire rope stranding pattern distributes bending stress across 133 individual wires (7 strands × 19 wires), providing >10&sup7; load cycles at 80% of rated capacity without measurable performance degradation. All-metal construction eliminates elastomer aging, creep, or compression set found in rubber-based mounts.

Complete Technical Specifications

Recommended Applications

• Industrial Generator Sets: Isolates engine-induced vibration from 15 kVA to 500 kVA diesel and gas generator packages, protecting radiator cores and control panel electronics from fatigue failure.
• HVAC & Air Handling Equipment: Reduces structure-borne noise transmission from centrifugal fans, cooling towers, and chiller units in commercial and industrial building installations.
• Compressor & Pump Skids: Provides reliable vibration isolation for reciprocating and rotary screw compressors operating at 800–3600 RPM, maintaining alignment under dynamic loading conditions.
• Mining & Quarry Equipment: Protects vibrating screens, crusher motor bases, and conveyor drive assemblies from high-amplitude shock loading in extractive industry environments.
• Marine Engine Room Machinery: Withstands salt-laden atmosphere and continuous humidity exposure in offshore vessel engine rooms, pump compartments, and auxiliary machinery spaces.
• Railway Signaling & Trackside Cabinets: Dampens rail-induced vibration at source frequencies of 20–200 Hz, ensuring reliable operation of sensitive electronic interlocking and communication equipment.

Quality Assurance: Every JGX-0400D-37A isolator undergoes 100% dimensional inspection, static load-deflection curve verification, and visual surface quality check before shipment. Custom load ratings, wire rope diameters, and mounting configurations are available through our OEM/ODM engineering service. Contact us today with your equipment specifications for a tailored vibration isolation proposal and competitive volume quotation.
