JGX-0320D-22A Extreme Environment Immune Wire Rope Vibration Isolator with High Damping Resonance Control

JGX-0320D-22A Extreme Environment Immune Wire Rope Vibration Isolator

Product Overview

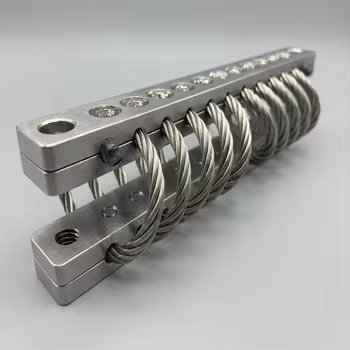

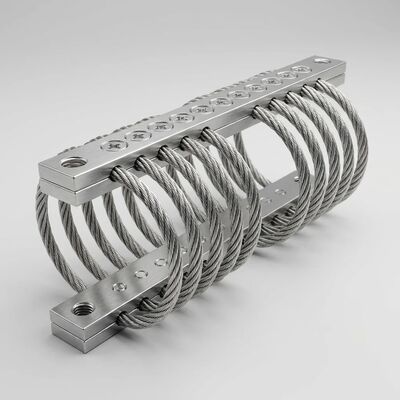

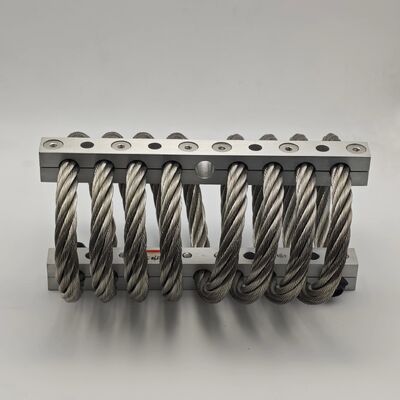

The JGX-0320D-22A is an extreme environment immune wire rope vibration isolator qualified to MIL-STD-810 standards with D-grade high damping resonance control. Purpose-built for applications where conventional isolation fails — arctic cold, desert heat, salt-laden marine atmospheres, chemically aggressive industrial environments — this isolator maintains calibrated vibration attenuation from -70°C to +300°C with zero performance drift. The enhanced D-grade damping ratio of 0.20-0.30 C/Cc delivers transmissibility below 3.0 at resonance, providing a critical safety margin against the catastrophic amplification that destroys sensitive payloads during multi-frequency excitation events. Qualification testing to MIL-STD-810 Method 514.6 (Vibration) and Method 516.6 (Shock) validates performance under standardized environmental stress conditions, giving system designers confidence in extreme-condition deployment.

Key Features

• MIL-STD-810 Qualification: Validated per Method 514.6 (Vibration) and Method 516.6 (Shock) of MIL-STD-810, providing documented test evidence for system qualification programs. This standard-based qualification eliminates the need for custom environmental testing when integrating the isolator into ruggedized equipment designs.
• Extreme Environment Immunity: All-metal 316L construction is fundamentally immune to the degradation mechanisms that destroy conventional isolators — no UV embrittlement, no moisture swelling, no thermal softening, no chemical attack. The electropolished and passivated surface withstands 1000+ hours of salt spray exposure (ASTM B117) with zero red rust formation.
• Enhanced High Damping Resonance Control: D-grade profile achieves 0.20-0.30 C/Cc damping — a 30-50% improvement over standard wire rope isolators. This elevated damping suppresses structural resonance during frequency sweeps, random vibration, and multi-mode excitation, protecting payloads from the 10-30x amplification factors that occur at undamped natural frequencies.
• 30g Shock Survivability: Validated transient shock protection up to 30g peak (11 ms half-sine pulse), suitable for equipment subjected to handling drops, vehicle impact loads, and transportation shock events. The Coulomb friction damping mechanism converts impact energy to heat within milliseconds, limiting payload acceleration to survivable levels.
• Broad-Spectrum Coverage: Natural frequency of 7-12 Hz with >95% isolation efficiency above 30 Hz provides comprehensive protection from low-frequency transportation vibration through high-frequency machinery-induced excitation — one isolator covering the full operational spectrum.
• 20+ Year Passive Reliability: Energy dissipation is purely mechanical — inter-strand friction with zero consumables. No hydraulic fluids, no viscoelastic polymers, no pneumatic elements. The damping mechanism is permanent and maintenance-free throughout a 20+ year design life.

Applications

• Remote environmental monitoring stations (arctic, desert, tropical)
• Offshore platform safety systems and emergency shutdown panels
• Civil aerospace ground support equipment and test instrumentation
• Seismic monitoring networks and early-warning sensor arrays
• High-speed rail traction control and onboard signaling electronics
• Marine engine room automation and condition monitoring systems
• Chemical plant process control and distributed control system cabinets
• Mining automation, telemetry, and communication infrastructure

Technical Specifications

Why Choose JGX-0320D-22A

When your equipment specification requires validated environmental qualification and you cannot afford the NRE cost of custom isolation development, the JGX-0320D-22A-02 provides an off-the-shelf, MIL-STD-810 qualified solution with full traceability. The D-grade high-damping profile provides an additional performance margin that accommodates real-world variability in installation conditions — mounting surface stiffness, payload center-of-gravity offsets, and combined loading scenarios that degrade the performance of narrowly-optimized isolators. Combined with 316L construction rated for 1000+ hours of salt spray exposure, this isolator can be specified with confidence for projects ranging from coastal industrial automation to remote arctic monitoring stations — anywhere environmental conditions would destroy a conventional mount within a single season. For engineering and procurement teams seeking to reduce qualification risk while maintaining aggressive project schedules, the JGX-0320D-22A is the qualified, immediately available answer.
