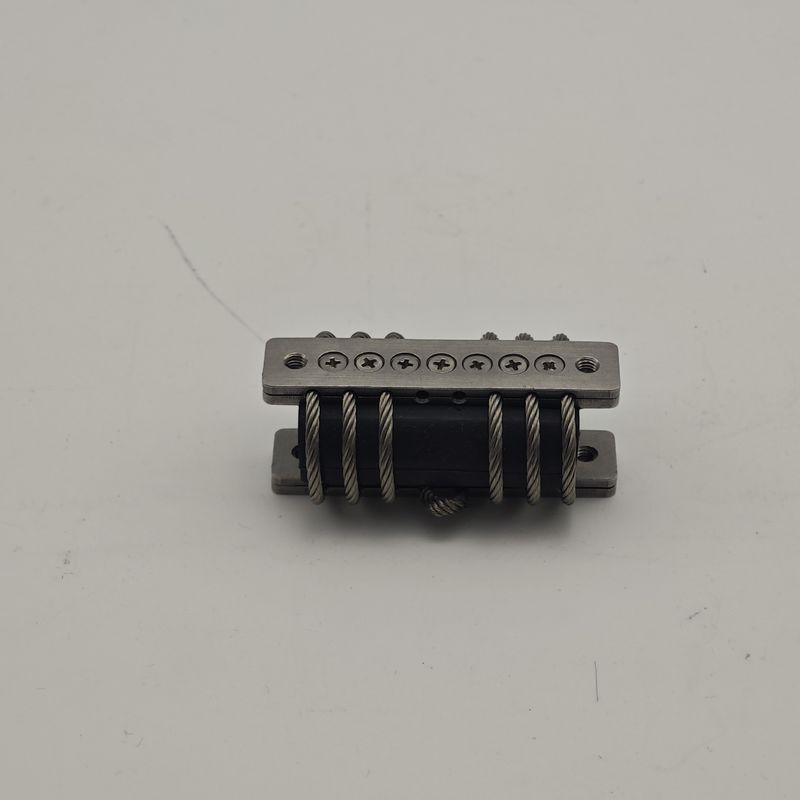

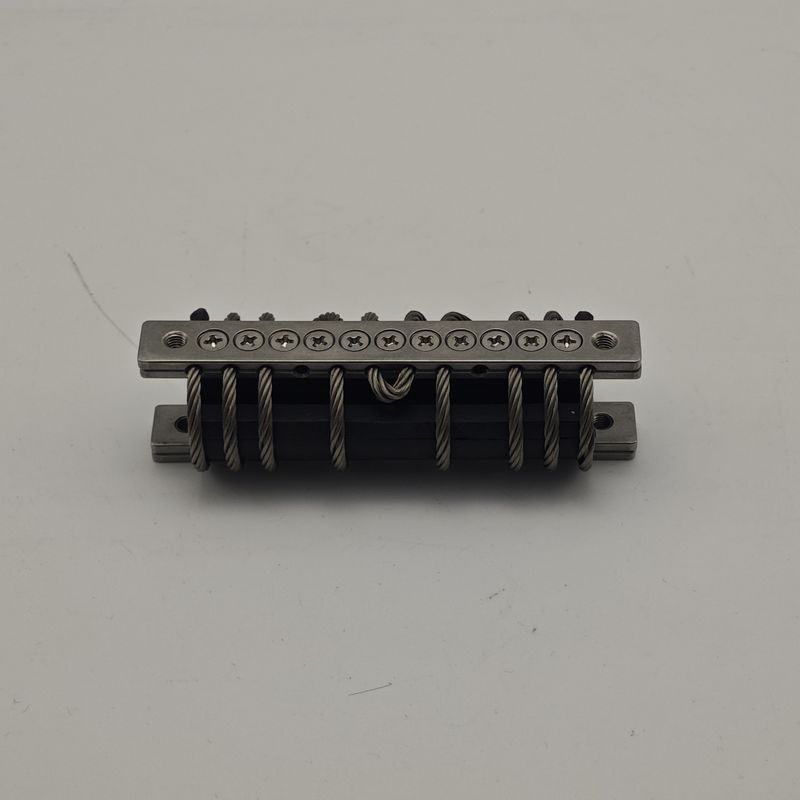

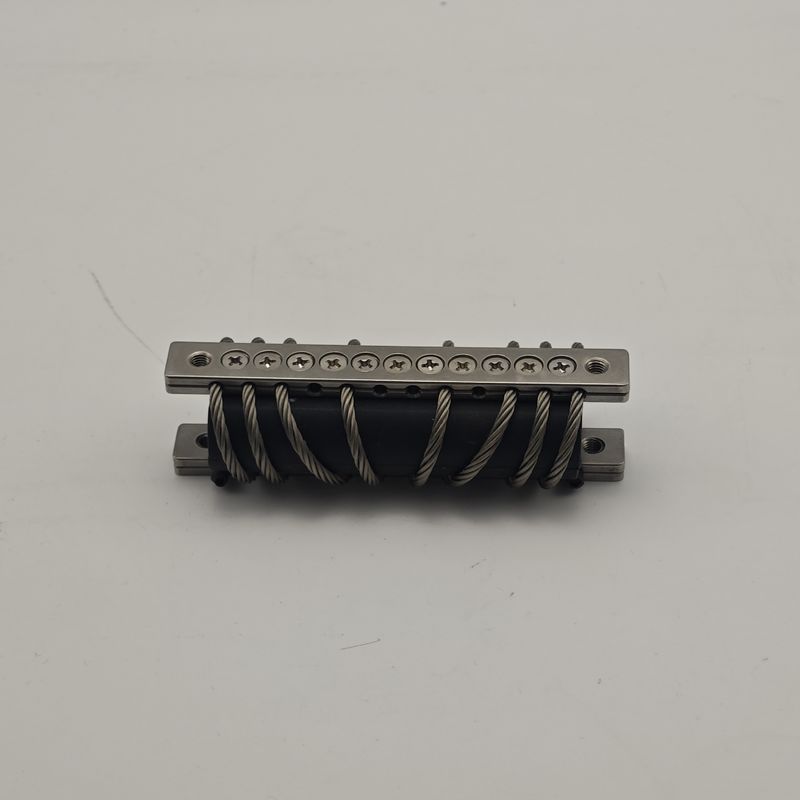

Name: Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GX-20A ((N)
Availability: InStock

À la maison > produits > Produits personnalisés >

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

Quiet Operation Wire Rope Vibration Isolator

Stable Equipment Performance Vibration Isolator

Excellent Damping Performance Shock Absorber

Lieu d'origine:

Chine

Nom de marque:

Hoan

Numéro de modèle:

GX-20A ((N)

Nous contacter

Demandez un devis

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

Détails du produit

Matériel:

Différents matériaux disponibles

Température de service:

1000 ℃ -1800 ℃

Personnalisé:

Oui

Impression:

Oui

Forme:

Personnalisé, non personnalisé

Résistance aux chocs thermiques:

Bonne résistance aux chocs thermiques

Taille:

Personnalisable

Stabilité chimique:

Stabilité chimique extrêmement élevée

Usage:

Produits alimentaires variés, cadeaux, papeterie

Vente:

Marchés européens et américains

Service après-vente:

Personnalisable

Mot clé:

matériaux réfractaires

Épaisseur:

0,15 mm

Mode de paiement:

Personnalisable

Mettre en évidence:

Quiet Operation Wire Rope Vibration Isolator

Stable Equipment Performance Vibration Isolator

Excellent Damping Performance Shock Absorber

Conditions de paiement et d'expédition

Quantité de commande min

Conditions de paiement

Moneygram, Western Union, T / T, D / P, D / A, L / C

Produits connexes

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

Obtenez le meilleur prix

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

Obtenez le meilleur prix

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

Obtenez le meilleur prix

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

Obtenez le meilleur prix

Nous contacter

86-29-88292913

Contactez-nous maintenant

Description du produit

GX-N Series Wire Rope Vibration Isolators

Guardian of Quiet Operation - The Ideal Solution for Stable Equipment Performance

Persistent vibration is a hidden threat to precision equipment, causing loose screws, component wear, inaccurate measurements, and increased noise. Xi'an Hoan Microwave's GX-N Series wire rope vibration isolators effectively isolate harmful vibrations, ensuring quiet and stable equipment operation.

Key Features

Excellent damping performance through dry friction between wire rope strands
Dual-action vibration control: isolation through elastic deformation and energy dissipation via internal friction
Effective vibration isolation across wide frequency bands, especially medium and high frequencies
Significantly reduces operational vibration and structural noise in power equipment
Creates stable working platforms for electronic cabinets and precision instruments
Enhances equipment reliability and extends operational lifespan

Structural Dimension Diagram

Dimensions Table

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Performance Characteristics

Vibration Curve

Impact Curve

Technical Specifications

Technical Parameter	Specification
Nominal Load (Pz)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95%
Working Temperature	-55°C to +120°C
Shock (Ks)	30g/6ms
Peak Response G	≤3.5km/s²
Vibration (Kv)	Complies with National Military Standard GJB150-16

The GX-N Series has become the trusted vibration isolation solution for numerous leading enterprises across industries, ensuring equipment operates efficiently in tranquility.
