JGX-0958A-43A Steel Wire Rope Vibration Isolator With 304 Stainless Steel Connectors And Fluororubber Sleeves

JGX-0958A-43A Wire Rope Vibration Isolator

Fluororubber Sleeves Wire Rope Vibration Isolator

Nom de marque:

Hoan

Nous contacter

Demandez un devis

JGX-0958A-43A Steel Wire Rope Vibration Isolator With 304 Stainless Steel Connectors And Fluororubber Sleeves

Détails du produit

Certifications:

OIN 9001, RoHs

Trous de montage:

Longueur de câble métallique:

6 pouces

Capacité de charge maximum:

100 kg ou plus

Température de travail:

-55~120

Isolation des vibrations:

Jusqu'à 90%

Longueur:

6-12 pouces

Rigidité axiale:

50 N/mm

Tension maximale:

0.5 pouces

Composants de base:

Réglage, pompe

Mots clés de produit:

Dispositifs d'isolation anti-frottement

Méthode d'installation:

horizontale ou verticale

Fonction:

Anti choc

Mettre en évidence:

JGX-0958A-43A Wire Rope Vibration Isolator

Fluororubber Sleeves Wire Rope Vibration Isolator

Conditions de paiement et d'expédition

Conditions de paiement

MoneyGram, Western Union, T/T, D/P, D/A, L/C

Produits connexes

Vidéo

JGX-0400A-31.5A Isolateur de vibration par câble métallique Montage vertical pour protéger votre équipement contre les vibrations et les chocs

Obtenez le meilleur prix

Vidéo

Isolateur de vibration par câble en acier inoxydable pour aérien et communication résistant à l'eau et durable JGX-0400-31.5A

Obtenez le meilleur prix

JGX-0648D-56A Isolateur de vibration méticuleusement conçu pour des performances optimales dans divers appareils

Obtenez le meilleur prix

JGX-0648A-45A Isolateur de vibration par câble métallique Réducteur efficace des vibrations pour moteurs automobiles

Obtenez le meilleur prix

Nous contacter

86-29-88292913

Contactez-nous maintenant

Description du produit

JGX-0958 Series

Steel Wire Rope Vibration Isolator JGX-0958A-43A builds multi-dimensional performance barriers with professional technical parameters! Woven from aviation-grade galvanized steel wire ropes into a composite damping structure, its original spiral cross-winding process gives it nonlinear vibration isolation characteristics in three degrees of freedom, with a natural frequency as low as 3-6Hz and vibration isolation efficiency exceeding 96%, precisely isolating low-frequency vibrations of precision equipment. Certified by UL, it withstands -60℃~180℃, maintaining stable damping performance in extreme temperature differences, and its impact resistance reaches 50G, effectively buffering impact loads during construction machinery start-stop.

Key performance advantages lie in three core dimensions:

Precision Isolation: Optimized for 430N rated load, with resonance amplification factor ≤2.5, suitable for vibration-sensitive scenarios like optical instruments and medical equipment;
Environmental Adaptability: 304 stainless steel connectors with fluororubber protective sleeves resist salt spray corrosion for over 1,000 hours, extending service life by 3 times in humid and acid-base environments;
Long-term Reliability: Passed 20 million fatigue cycles without attenuation, dynamic stiffness variation rate <5%, far exceeding industry averages, enabling 10-year maintenance-free operation. From aerospace equipment to high-end manufacturing, JGX-0958A-43A safeguards equipment operation with military-grade performance.

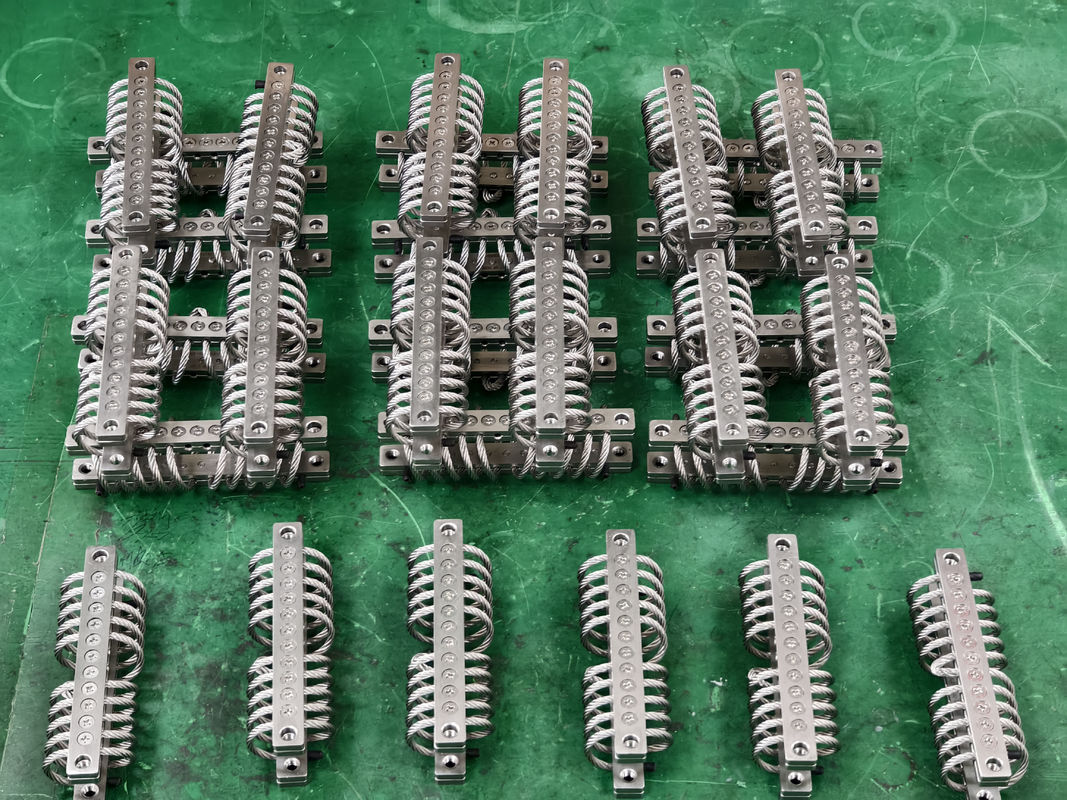

JGX-0958A-43A Steel Wire Rope Vibration Isolator With 304 Stainless Steel Connectors And Fluororubber Sleeves 0

Static-Load Curve

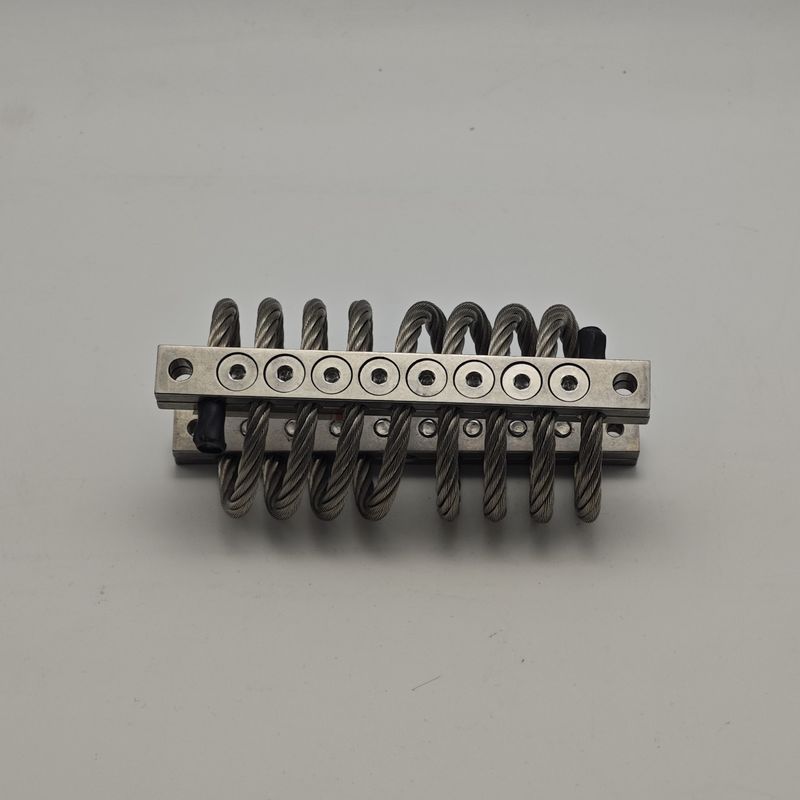

JGX-0958A-43A Steel Wire Rope Vibration Isolator With 304 Stainless Steel Connectors And Fluororubber Sleeves 1

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	149	34.0	366	179
2	JGX-0958A-138A	138	37.1	320	152
3	JGX-0958A-108A	108	40.1	242	110
4	JGX-0958A-99A	99	44.7	205	91
5	JGX-0958A-95A	95	49.8	182	79
6	JGX-0958A-54A	54	66.0	86	33
7	JGX-0958A-43A	43	68.1	67	26

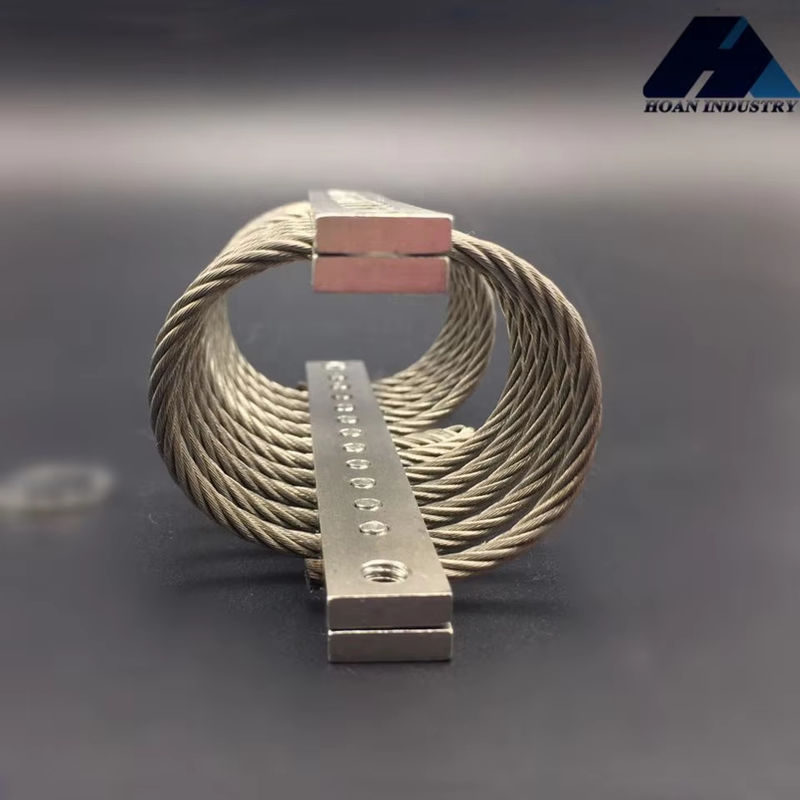

JGX-0958A-43A Steel Wire Rope Vibration Isolator With 304 Stainless Steel Connectors And Fluororubber Sleeves 2

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	120.3	47.8	236	103
2	JGX-0958A-138A	111.2	51.8	208	88
3	JGX-0958A-108A	90.8	55.9	159	65
4	JGX-0958A-99A	84.0	63.0	137	54
5	JGX-0958A-95A	79.4	71.1	123	47
6	JGX-0958A-54A	47.7	91.9	60	21
7	JGX-0958A-43A	38	95	47	16

JGX-0958A-43A Steel Wire Rope Vibration Isolator With 304 Stainless Steel Connectors And Fluororubber Sleeves 3

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	93.1	36.1	130	130
2	JGX-0958A-138A	88.5	39.1	112	112
3	JGX-0958A-108A	68.1	42.2	77	77
4	JGX-0958A-99A	63.6	47.2	65	65
5	JGX-0958A-95A	61.3	52.8	60	60
6	JGX-0958A-54A	27.2	68.1	27	27
7	JGX-0958A-43A	20.4	71.7	19	19
