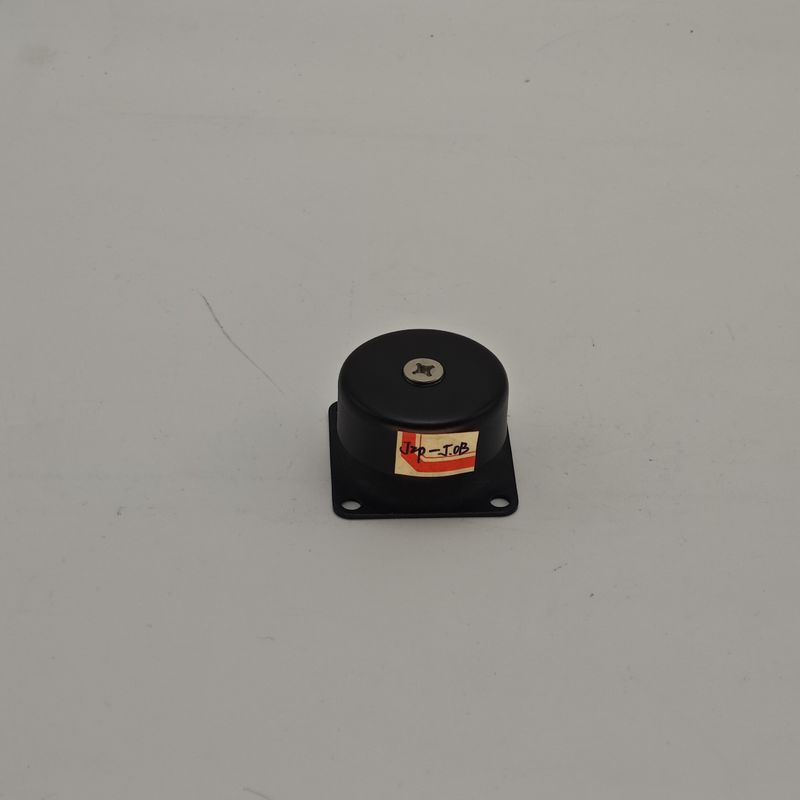

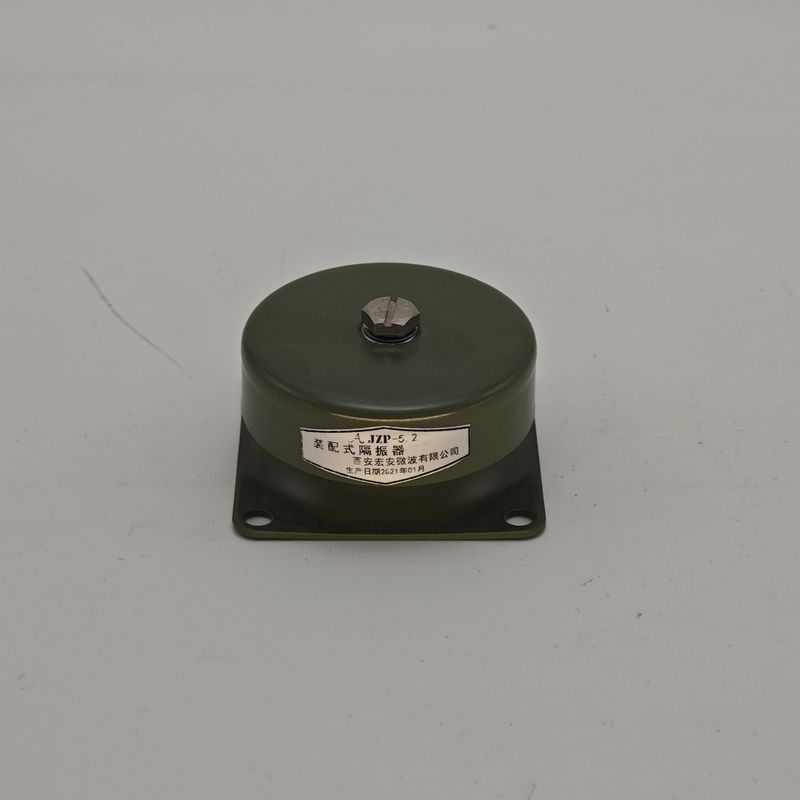

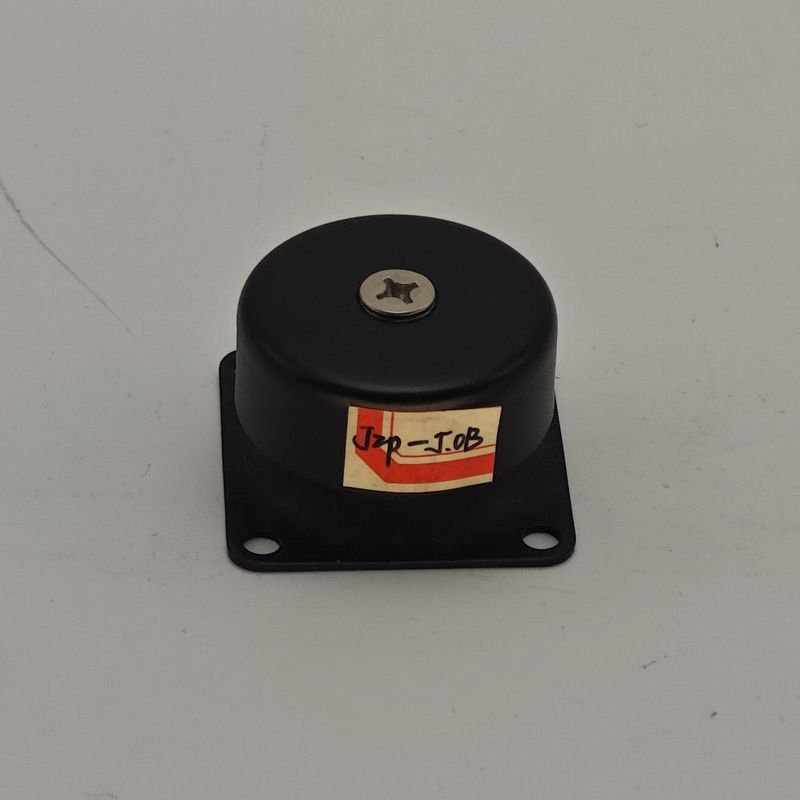

Name: JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.0B-SC
Availability: InStock

À la maison > produits > amortisseur en caoutchouc >

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

10Hz to 100Hz Frequency Range Rubber Shock Absorber

High Vibration Resistance Vibration Isolator

New Product 2025 JZP-B-SC Series

Lieu d'origine:

Chine

Nom de marque:

Hoan

Numéro de modèle:

JZP-5.0B-SC

Nous contacter

Demandez un devis

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Détails du produit

Plage de fréquences de vibration:

10Hz à 100Hz

Port:

Xi'an ou spécifié

Service après garantie:

assistance en ligne

Performance:

Étalant

Résistance aux vibrations:

Haut

Type de commercialisation:

Nouveau produit 2025

Caractéristiques:

fréquence de travail élevée, longue durée de vie

OEM:

Oui

Type de montage:

Enfilé

Usage:

Absorbe les chocs et les vibrations

Température de travail:

-55 ~ +120

Couleur:

Noir

Coût:

Abordable

Mettre en évidence:

10Hz to 100Hz Frequency Range Rubber Shock Absorber

High Vibration Resistance Vibration Isolator

New Product 2025 JZP-B-SC Series

Conditions de paiement et d'expédition

Quantité de commande min

Conditions de paiement

L / C, D / A, D / P, Western Union, T / T, Moneygram

Produits connexes

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Obtenez le meilleur prix

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Obtenez le meilleur prix

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Obtenez le meilleur prix

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Obtenez le meilleur prix

Nous contacter

86-29-88292913

Contactez-nous maintenant

Description du produit

JZP-5.0B-SC Vibration Isolators - Tested Rubber Shock Absorbers for On-Vehicle Efficiency Validation

JZP-B-SC Series

From Lab to Road: Rigorous Testing and Quality Validation of the JZP Series Vibration Isolators

The reliability of a vibration isolator's performance cannot be based solely on theoretical calculations—it must withstand rigorous practical testing. Xi'an Hoan Microwave Co., Ltd. maintains a comprehensive testing and validation system for the JZP Series On-Vehicle Modular Vibration Isolators, from laboratory evaluations to real-vehicle trials, ensuring every product meets the highest standards.

Precise Evaluation in Laboratory Environments

During development, JZP Series prototypes undergo professional vibration testing:

Sinusoidal sweep frequency tests determine natural frequency and transmissibility curves
Random vibration tests simulate real road conditions to verify isolation efficiency
Shock tests evaluate ultimate load-bearing capacity and buffering performance

Environmental Adaptability Tests

The JZP Series undergoes extreme condition testing to ensure performance reliability:

High-low temperature alternating tests
Damp-heat resistance tests
Salt spray corrosion tests

Real-Vehicle Road Tests

Final validation comes from actual vehicle performance testing across diverse road conditions, with acceleration sensors collecting vibration data to demonstrate the JZP Series' superior isolation capabilities.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Performance Curves

Vibration

Impact
