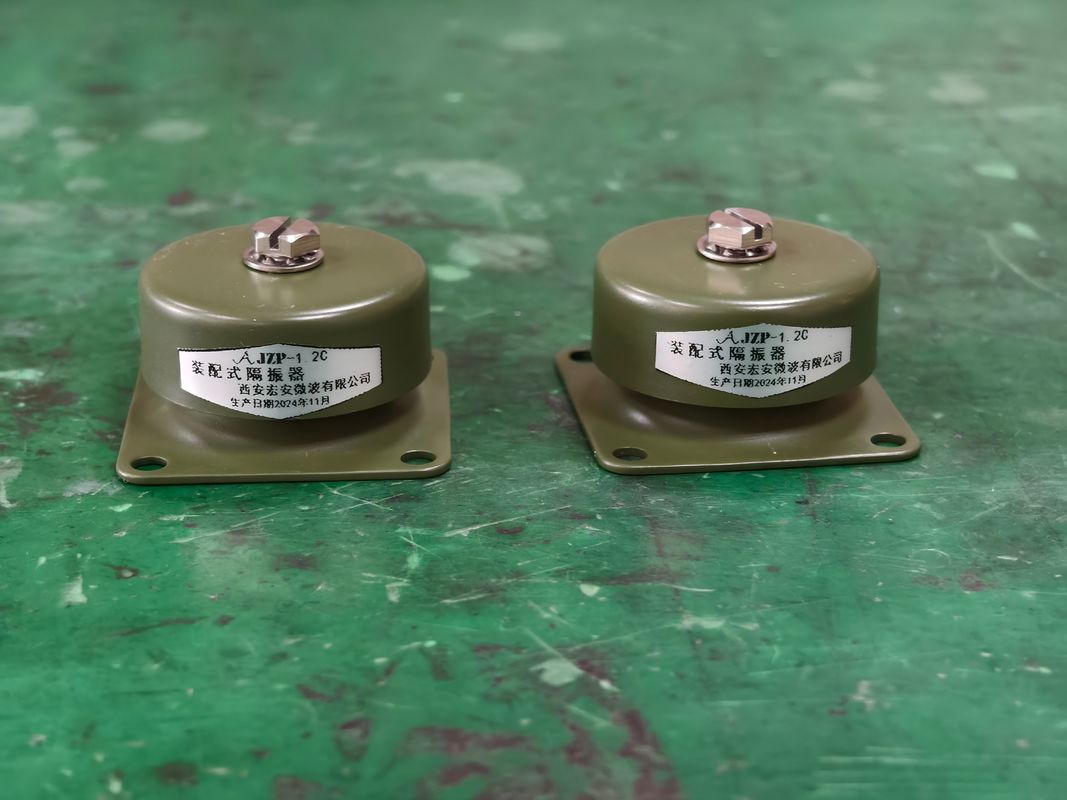

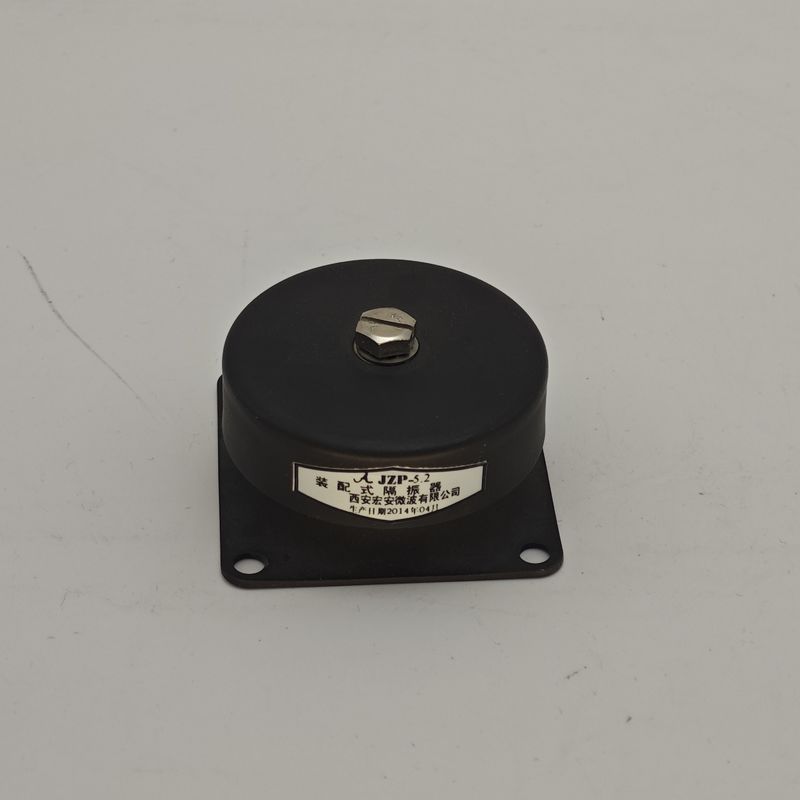

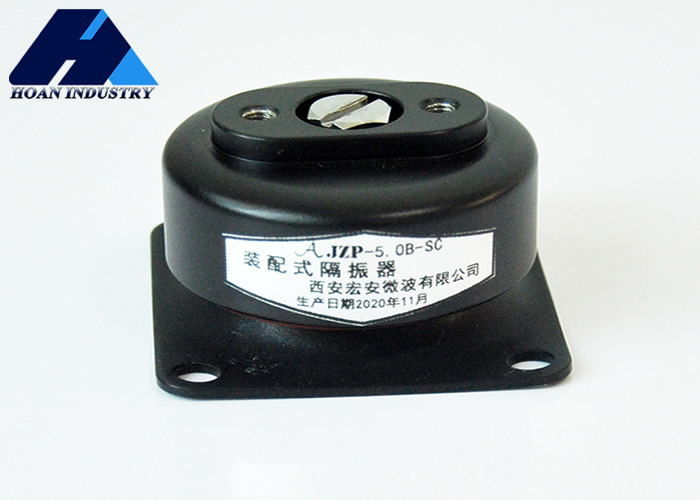

Name: JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-2.0B-SC
Availability: InStock

À la maison > produits > amortisseur en caoutchouc >

JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption

30mm Rubber Shock Absorber

Anchoring Holes Vibration Isolator

Energy Absorption JZP Series

Lieu d'origine:

Chine

Nom de marque:

Hoan

Numéro de modèle:

JZP-2.0B-SC

Nous contacter

Demandez un devis

JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption

Détails du produit

Caractéristiques:

fréquence de travail élevée, longue durée de vie

Température de travail:

-55 ~ +120

Hauteur:

30 mm

Certification des produits:

ISO 9001

Diamètre:

0,25-2 pouces

Port:

Xi'an ou spécifié

Caractéristiques:

Trous d'ancrage; Huile

Emballage:

Emballage standard

Temperatu de travail:

: -55 ~ +120

Couleur:

Noir

Accessoires:

Filet

Fonction:

Absorber l'énergie et la dissiper sous forme de chaleur

Mettre en évidence:

30mm Rubber Shock Absorber

Anchoring Holes Vibration Isolator

Energy Absorption JZP Series

Conditions de paiement et d'expédition

Quantité de commande min

Conditions de paiement

LC, D/A, D/P, T/T, Western Union, MoneyGram

Produits connexes

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Obtenez le meilleur prix

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Obtenez le meilleur prix

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Obtenez le meilleur prix

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Obtenez le meilleur prix

Nous contacter

86-29-88292913

Contactez-nous maintenant

Description du produit

Rubber Shock Absorber for On-Vehicle Equipment JZP-2.0B-SC for Long-Term Cost Reduction Efficiency Enhancement

JZP-B-SC Series

Engineering Wisdom for Cost Reduction & Efficiency Enhancement: The Whole-Life-Cycle Value of Xi'an Hoan's JZP Series Vibration Isolators

When procuring on-vehicle equipment components, the initial cost is just the beginning. The JZP Series On-Vehicle Modular Vibration Isolators from Xi'an Hoan Microwave Co., Ltd. offer exceptional engineering design and long-lasting reliability, delivering outstanding whole-life-cycle value for users seeking long-term cost reduction and efficiency enhancement.

Reducing Maintenance Costs: Equipment without proper vibration isolation experiences exponentially higher failure rates. The JZP Series minimizes equipment failures through source protection, significantly reducing repair costs and downtime.
Extending Equipment Service Life: Vibration and impact are primary causes of electronic equipment failure. JZP vibration isolators provide life-extension protection for precision devices, delaying expensive replacement cycles and improving ROI.
Enhancing System Availability: For critical applications like emergency communications and military operations, the JZP Series ensures continuous equipment operation during movement, where its value far exceeds its purchase price.

Choosing Xi'an Hoan's JZP Series represents a forward-looking, highly cost-effective strategic investment rather than a simple procurement decision.

Dimension Parameter Table

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameter Table

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Vibration and Impact Performance Curves

Vibration Performance

Impact Performance
