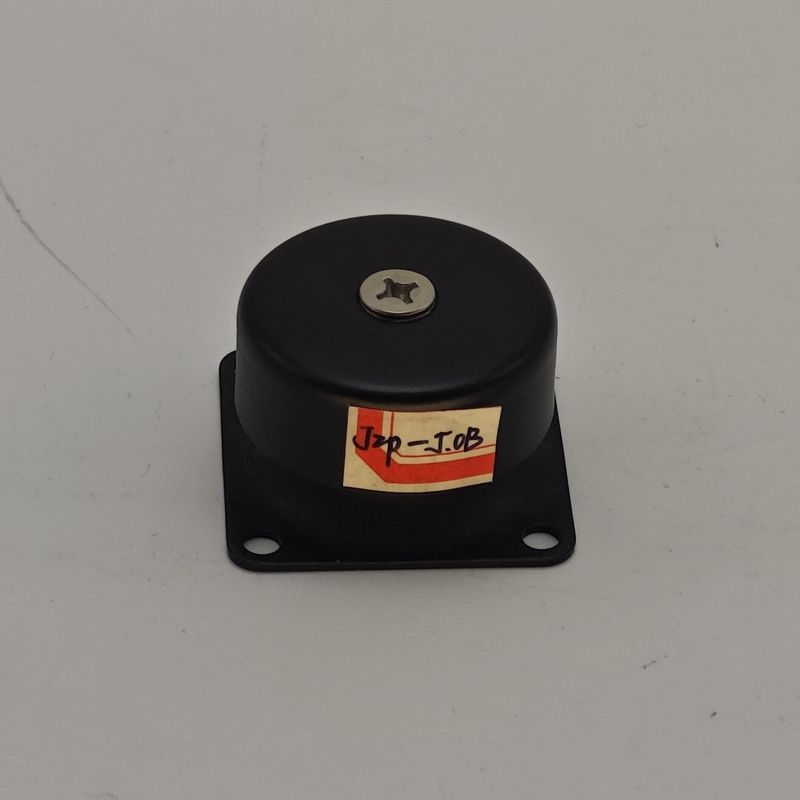

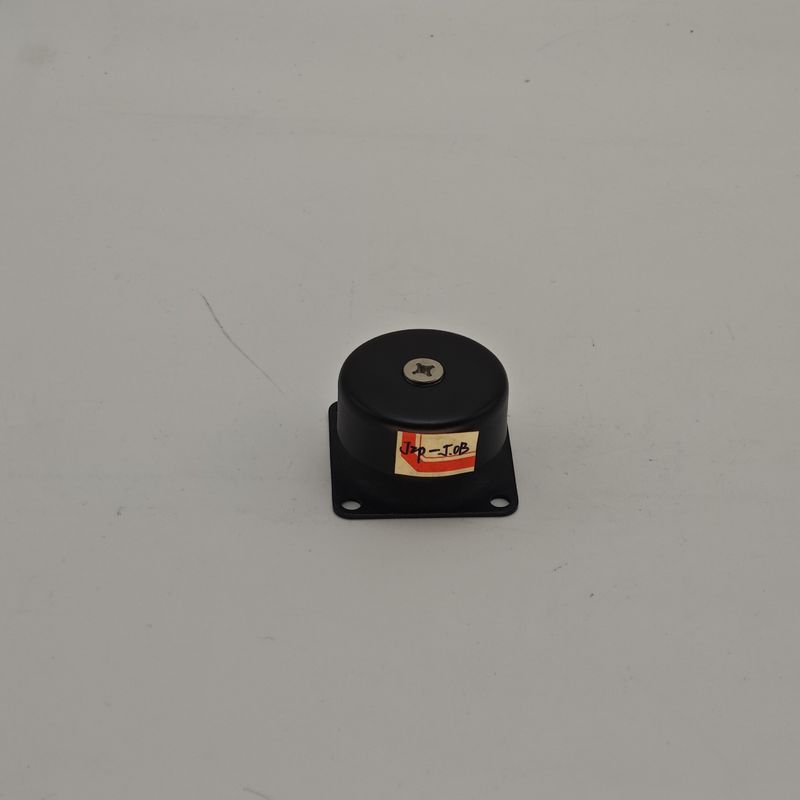

Name: JZP-3.2-SC-SC1 Rubber Shock Absorber with Resonant Frequency 5-10HZ Damping Ratio 0.5 and Up to 90% Vibration Isolation for Precision Equipment
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-3.2-SC-SC1
Availability: InStock

À la maison > produits > amortisseur en caoutchouc >

JZP-3.2-SC-SC1 Rubber Shock Absorber with Resonant Frequency 5-10HZ Damping Ratio 0.5 and Up to 90% Vibration Isolation for Precision Equipment

Resonant Frequency 5-10HZ Rubber Shock Absorber

Damping Ratio 0.5 Vibration Isolator

Up to 90% Vibration Isolation Friction Damping Vibration Isolator

Lieu d'origine:

CHINE

Nom de marque:

Hoan

Numéro de modèle:

JZP-3.2-SC-SC1

Nous contacter

Demandez un devis

JZP-3.2-SC-SC1 Rubber Shock Absorber with Resonant Frequency 5-10HZ Damping Ratio 0.5 and Up to 90% Vibration Isolation for Precision Equipment

Détails du produit

Industries applicables:

Énergie et exploitation minière

Fréquence de résonance:

5-10Hz

Rapport d'amortissement:

0,5

Port:

Xi'an ou spécifié

Type d'installation:

Horizontal / vertical

Type d'isolement des vibrations:

Passif

Matériau de corde métallique:

Acier galvanisé

Produit relatif:

Amortisseur de back-rare

Poids:

0,2 kg

Accessoires:

Filet

Isolement des vibrations:

Jusqu'à 90%

Mettre en évidence:

Resonant Frequency 5-10HZ Rubber Shock Absorber

Damping Ratio 0.5 Vibration Isolator

Up to 90% Vibration Isolation Friction Damping Vibration Isolator

Conditions de paiement et d'expédition

Quantité de commande min

Conditions de paiement

L / C, D / A, D / P, T / T, Western Union, Moneygram

Produits connexes

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Obtenez le meilleur prix

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

Obtenez le meilleur prix

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Obtenez le meilleur prix

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Obtenez le meilleur prix

Nous contacter

86-29-88292913

Contactez-nous maintenant

Description du produit

JZP-3.2-SC-SC1 The Innovative Rubber Shock Absorber for Precision Equipment Stability

JZP-SC-SC1 Series Friction Damping Vibration Isolator

Redefining stability for precision equipment in manufacturing, laboratory measurement, and high-end communications applications. The JZP-sc-sc1 series from Xi'an Hoan Microwave Co., Ltd. provides an advanced solution for vibration isolation where even micron-level vibrations can compromise performance.

Advanced Friction Damping Technology

Unlike conventional spring or pneumatic isolators, the JZP-sc-sc1 series features an innovative friction damping mechanism that converts destructive vibration energy into thermal energy for dissipation. This technology acts as an "invisible steward" for your equipment, effectively suppressing both continuous low-frequency oscillations and sudden transient impacts.

Key Performance Advantages

Superior full-frequency vibration isolation performance
High damping characteristics significantly reduce resonance peaks
Ensures smooth equipment transitions during startup, shutdown, or external disturbances
Integrates efficient vibration isolation with high load-bearing capacity
Compact, maintenance-free design for reliable long-term operation

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2	Same as above
JMZ-5.2-SC-SC1	5.2	Same as above
JMZ-6.0-SC-SC1	6.0	Same as above
JMZ-7.0-SC-SC1	7.0	Same as above
JZP-7.5-SC-SC1	7.5	Same as above
JZP-9.0-SC-SC1	9.0	Same as above
JZP-10.5-SC-SC1	10.5	Same as above
JZP-13.5-SC-SC1	13.5	Same as above
JZP-15-SC-SC1	15	Same as above

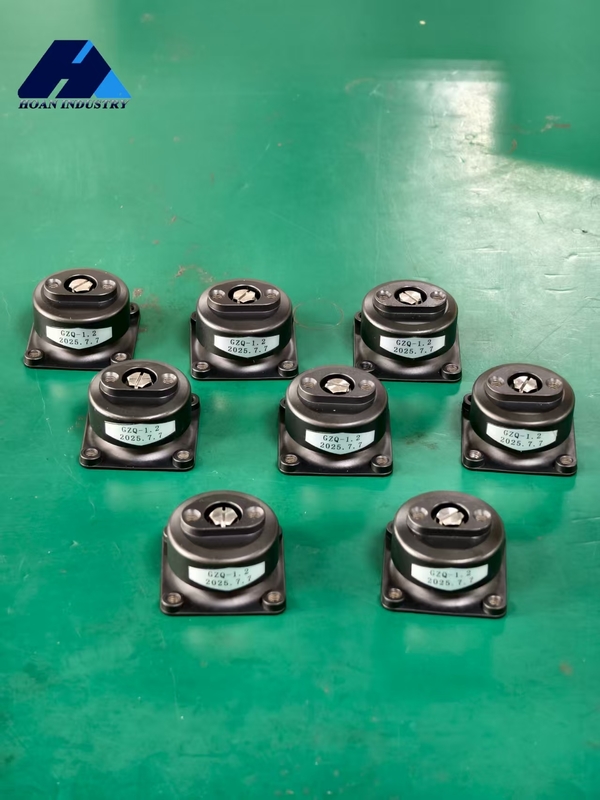

Customer Applications
