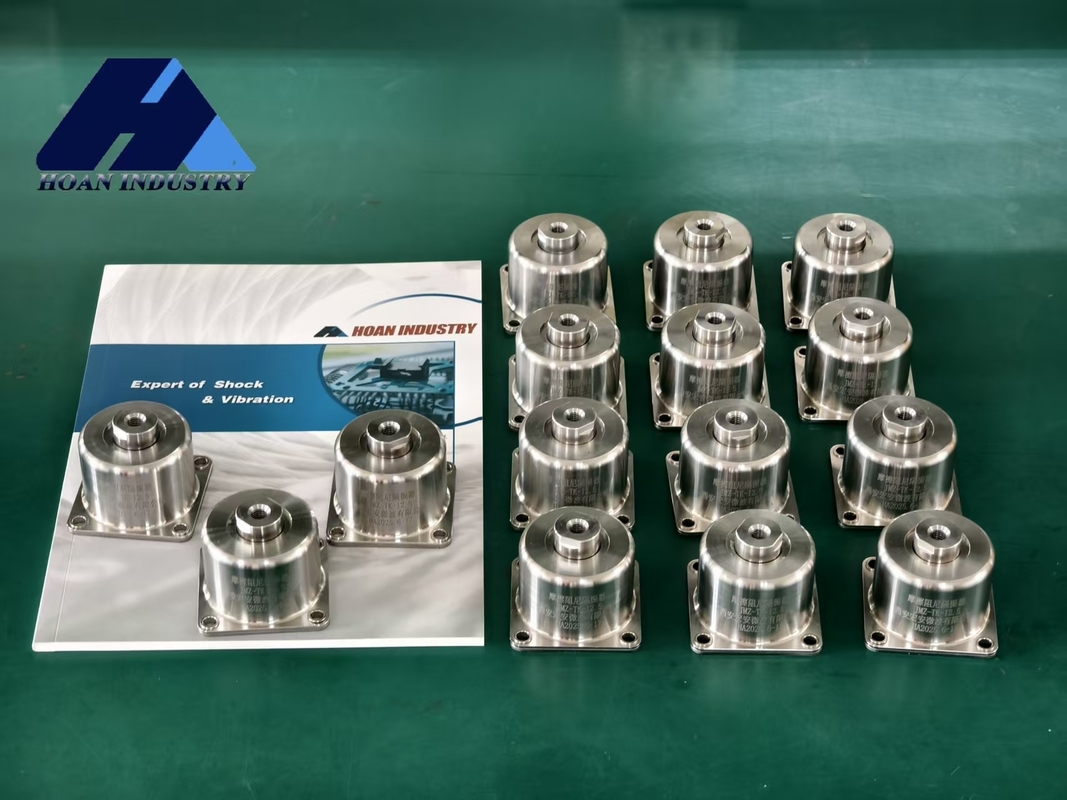

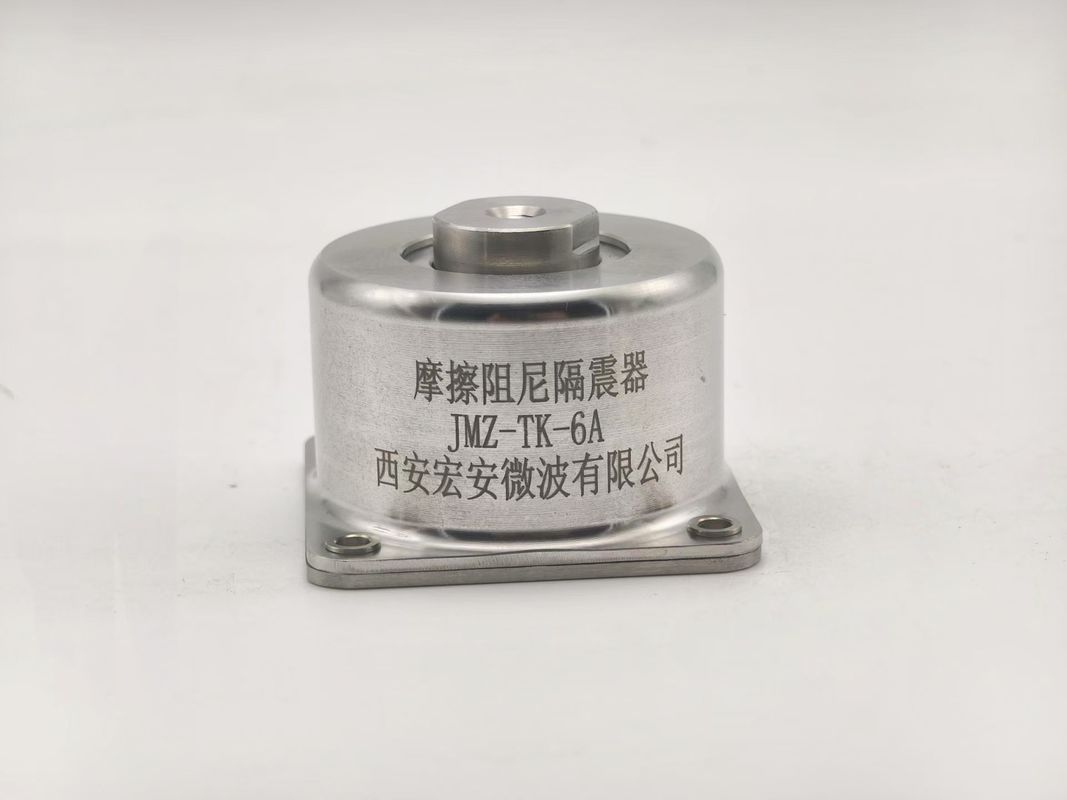

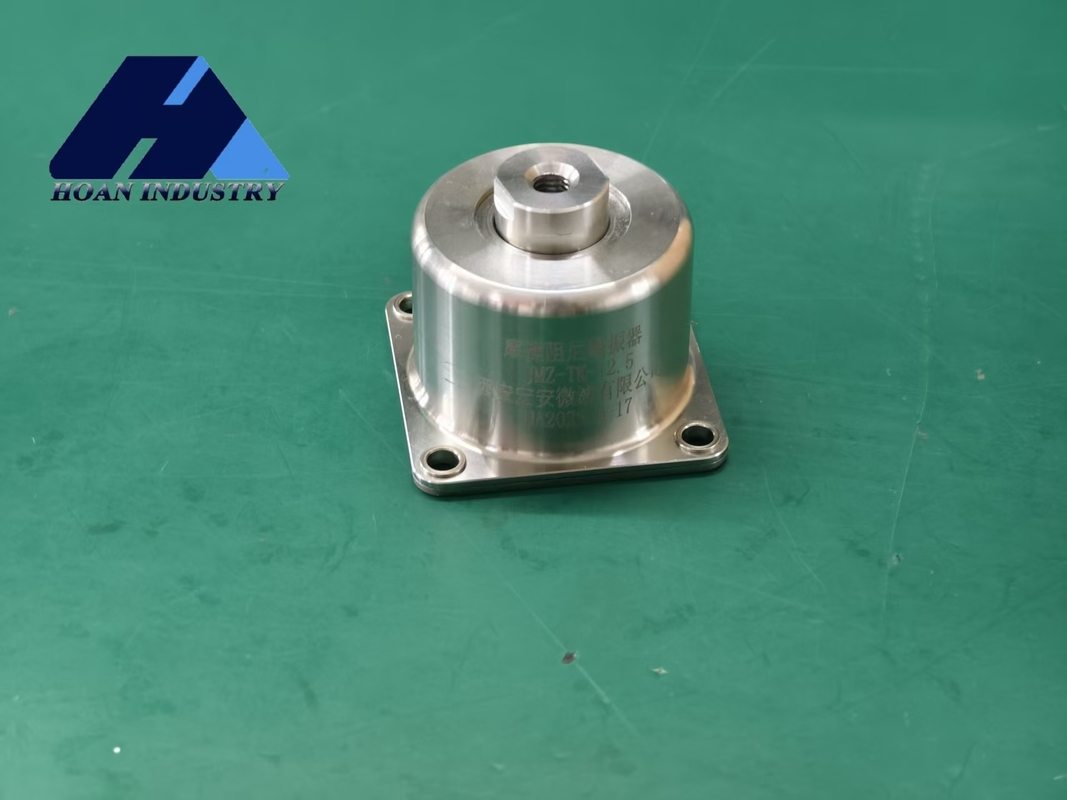

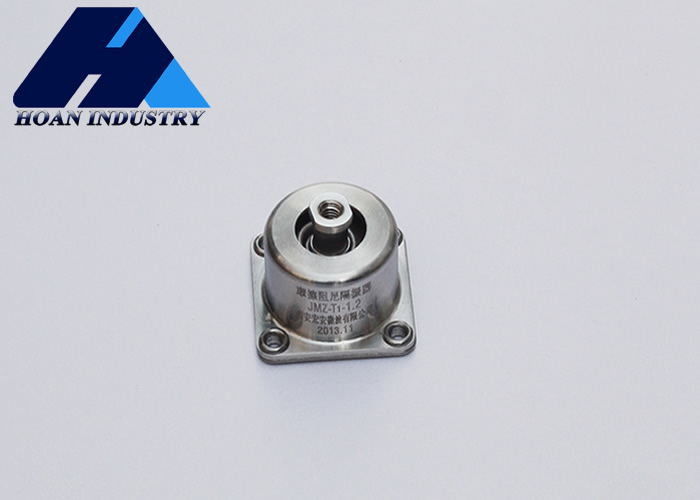

Name: JMZ-TK1-7A Vibration Isolator with 4 inches Diameter for High-Frequency and Ultra-Low Frequency Vibration Control
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-TK1-7A
Availability: InStock

À la maison > produits > Isolateur à ressort >

JMZ-TK1-7A Vibration Isolator with 4 inches Diameter for High-Frequency and Ultra-Low Frequency Vibration Control

4 inches Diameter Vibration Isolator

High-Frequency Vibration Control Spring Isolator

Ultra-Low Frequency Vibration Control JMZ-TK Series

Lieu d'origine:

CHINE

Nom de marque:

Hoan

Numéro de modèle:

JMZ-TK1-7A

Nous contacter

Demandez un devis

JMZ-TK1-7A Vibration Isolator with 4 inches Diameter for High-Frequency and Ultra-Low Frequency Vibration Control

Détails du produit

Couleur:

Argent

Efficacité d'isolement:

95%

Applications:

Supports de moteur industriel

Industries applicables:

Énergie et exploitation minière

Structure:

Hélicoïdal

Garantie:

1 an

Durabilité:

Longue durée

Dimensions:

Différentes tailles disponibles

Résistance aux chocs:

Fort

Résilience:

Haut

Type de montage:

Vissé

Diamètre:

4 pouces

Emplacement de la salle d'exposition:

Aucun

Mettre en évidence:

4 inches Diameter Vibration Isolator

High-Frequency Vibration Control Spring Isolator

Ultra-Low Frequency Vibration Control JMZ-TK Series

Conditions de paiement et d'expédition

Quantité de commande min

Conditions de paiement

L / C, D / A, D / P, T / T, Western Union, Moneygram

Produits connexes

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

Obtenez le meilleur prix

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

Obtenez le meilleur prix

JMZ-TK-8A Customized Solutions Stainless Steel Spring Isolator with Excellent Shock Absorption and Easy Installation

Obtenez le meilleur prix

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

Obtenez le meilleur prix

Nous contacter

86-29-88292913

Contactez-nous maintenant

Description du produit

JMZ-TK1-7A The Ultimate Vibration Isolator for High-Frequency and Ultra-Low Frequency Vibration Control in Scientific Research

JMZ-TK Series

Raising the Precision Ceiling of Scientific Research: The Value of JMZ-TK in Precision Measuring Instruments

In cutting-edge scientific research, measurement precision often determines the upper limit of new discoveries. Equipment such as scanning electron microscopes (SEM), atomic force microscopes (AFM), lithography machines, and gravitational wave detection devices are sensitive to environmental vibrations at the nanometer or even picometer level. The JMZ-TK series vibration isolators from Xi'an Hoan Microwave are precisely "ultra-quiet platforms" tailor-made for these cutting-edge scientific research instruments that pursue extreme precision.

The requirements for vibration isolation systems in these instruments are extremely stringent: they must not only isolate medium-to-high frequency vibrations, but also effectively address ultra-low frequency (<1Hz) ground microtremor noise. The JMZ-TK series perfectly meets this challenge through the combination of its low natural frequency design and high damping characteristics.

Combating Ground Microtremors: Through optimized design, its vertical natural frequency can be as low as 3-5Hz or even lower, enabling effective isolation of the main frequency band (1-20Hz) of ground microtremors.
Suppressing Internal Microvibrations: Microvibrations are also generated by internal components of high-precision instruments, such as scanning mechanisms and vacuum pumps. The high damping of JMZ-TK can quickly attenuate the transmission of these internal vibrations, preventing resonance from forming inside the instrument structure and interfering with measurement signals.

When researchers place samples under an electron microscope to observe atomic structures, or when a lithography machine etches nanoscale circuits on a silicon wafer, the JMZ-TK builds a nearly absolute static reference frame beneath the equipment. It eliminates image blurring, measurement drift, and circuit jagged edges caused by vibrations, directly improving the equipment's ultimate resolution and repeat measurement precision. It can be said that the JMZ-TK series is an unsung hero that helps scientists explore the unknown and expand the boundaries of human cognition.

Structural Dimension Diagram

Model	Installation dimensions(mm)	Overall dimensions(mm)
JMZ-TK1-25A/40A/50A	B: 63	A: 78
JMZ-TK1-25A/40A/50A	M: 12	C: 20

Technical Parameter Table

Model	Nominal Load (N)	Load Range (N)	Natural Frequency fn≤(Hz)	Loading Working Height H0±1(mm)	Maximum Vibration Transmissibility	Impact Resistance Test	Service Life (year)
JMZ-TK-2.5A	25	20～30	33	42	3	100g	10
JMZ-TK-4A	40	30～50
JMZ-TK-5A	50	40～60
JMZ-TK-6A	60	50～70
JMZ-TK-7A	70	60～80
JMZ-TK-8A	80	70～90
