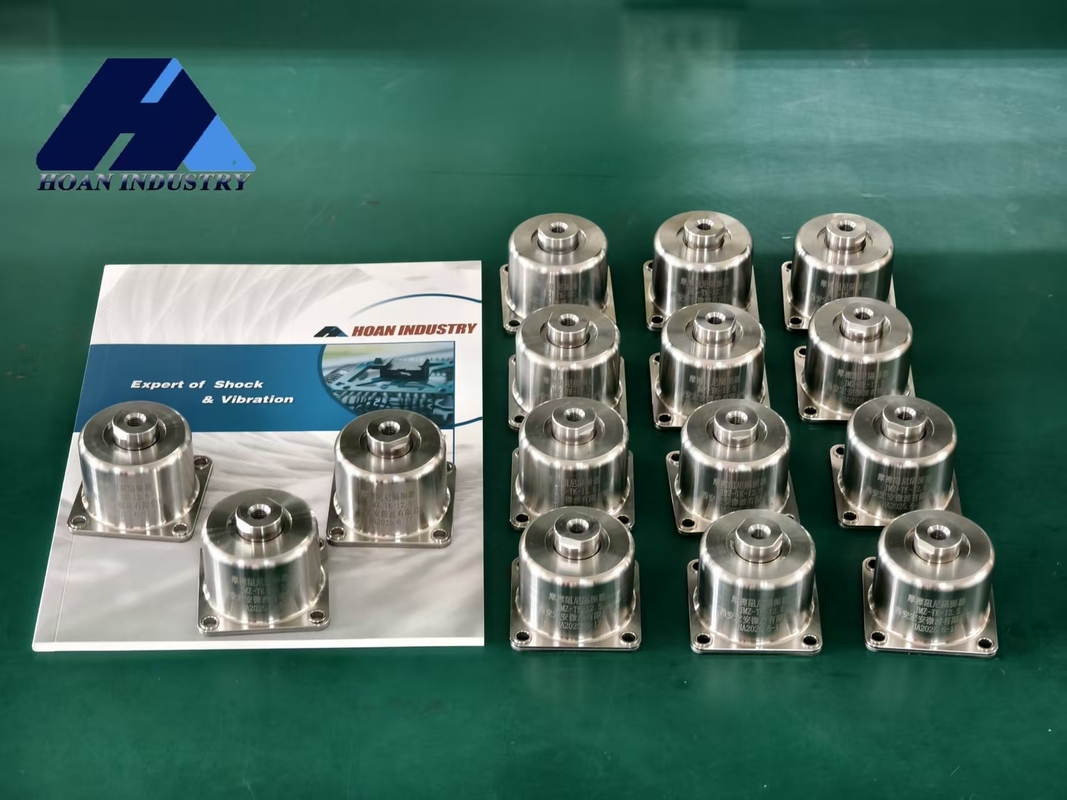

Name: JMZ-TK-5A JMZ-TK Series Combining Rigidity and Flexibility for Optimal Vibration Isolation in High-Frequency and Impact Situations
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-TK-5A
Availability: InStock

À la maison > produits > Isolateur à ressort >

JMZ-TK-5A JMZ-TK Series Combining Rigidity and Flexibility for Optimal Vibration Isolation in High-Frequency and Impact Situations

Combining Rigidity and Flexibility Spring Isolator

Impact Resistance Vibration Isolator

Customizable Friction Damping Isolator

Lieu d'origine:

CHINE

Nom de marque:

Hoan

Numéro de modèle:

JMZ-TK-5A

Nous contacter

Demandez un devis

JMZ-TK-5A JMZ-TK Series Combining Rigidity and Flexibility for Optimal Vibration Isolation in High-Frequency and Impact Situations

Détails du produit

Plage de température de fonctionnement:

-40 ° C à 120 ° C

Matériel:

Printemps

Application:

Contrôle des vibrations et du bruit

Industries applicables:

Boutiques de matériaux de construction, énergie et mine

Durabilité:

Longue durée

Résilience:

Haut

Couleur:

Argent

Caractéristiques:

Capacité de charge élevée, excellente isolation contre les vibrations et le bruit

Emplacement de la salle d'exposition:

Aucun

After Garantie Service:

Assistance en ligne

Efficacité d'isolement:

Jusqu'à 95%

Disponibilité:

Largement disponible

Personnalisation:

Disponible sur demande

Composants de base:

Palier

Mettre en évidence:

Combining Rigidity and Flexibility Spring Isolator

Impact Resistance Vibration Isolator

Customizable Friction Damping Isolator

Conditions de paiement et d'expédition

Quantité de commande min

Conditions de paiement

L / C, D / A, D / P, T / T, Western Union, Moneygram

Produits connexes

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

Obtenez le meilleur prix

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

Obtenez le meilleur prix

JMZ-TK-8A Customized Solutions Stainless Steel Spring Isolator with Excellent Shock Absorption and Easy Installation

Obtenez le meilleur prix

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

Obtenez le meilleur prix

Nous contacter

86-29-88292913

Contactez-nous maintenant

Description du produit

JMZ-TK-5A JMZ-TK Series Vibration Isolators

Combining Rigidity and Flexibility for Optimal Vibration Isolation in High-Frequency and Impact Situations

JMZ-TK Series: Revolutionary Friction Damping Technology

The JMZ-TK series from Xi'an Hoan Microwave Co., Ltd. represents a significant advancement in vibration isolation technology, overcoming the limitations of traditional solutions like spring isolators, rubber isolators, and air springs.

Key Performance Advantages

Nearly Ideal Full-Frequency Protection: Combines high-elasticity components with friction damping mechanism for effective vibration isolation across all frequencies
Outstanding Environmental Adaptability: Maintains stable performance in extreme temperatures from -40°C to +80°C
Long Service Life: Features proprietary wear-resistant materials and simple, reliable design for maintenance-free operation

Structural Dimensions

Model	Installation dimensions (mm)	Overall dimensions (mm)
JMZ-TK-2.5A～8A	B: 46, M: 6, d: 4.1, A: 58, C: 20	∅1: 55, ∅2: 22, H1: 36, H2: 3.6
JMZ-TK1-25A/40A/50A	B: 63, M: 12, d: 8.2, A: 78, C: 20	∅1: 70, ∅2: 22, H1: 56, H2: 6

Technical Parameters

Model	Nominal Load (N)	Load Range (N)	Natural Frequency fn≤(Hz)	Loading Working Height H0±1(mm)	Max Vibration Transmissibility ηv≤	Impact Resistance	Service Life (year)
JMZ-TK-2.5A	25	20～30	33	42	3	100g	10
JMZ-TK-4A	40	30～50
JMZ-TK-5A	50	40～60
JMZ-TK-6A	60	50～70
JMZ-TK-7A	70	60～80
JMZ-TK1-25A	250	200～300

The JMZ-TK series represents Xi'an Hoan's technological innovation in vibration isolation, providing superior stability for demanding industrial applications.
