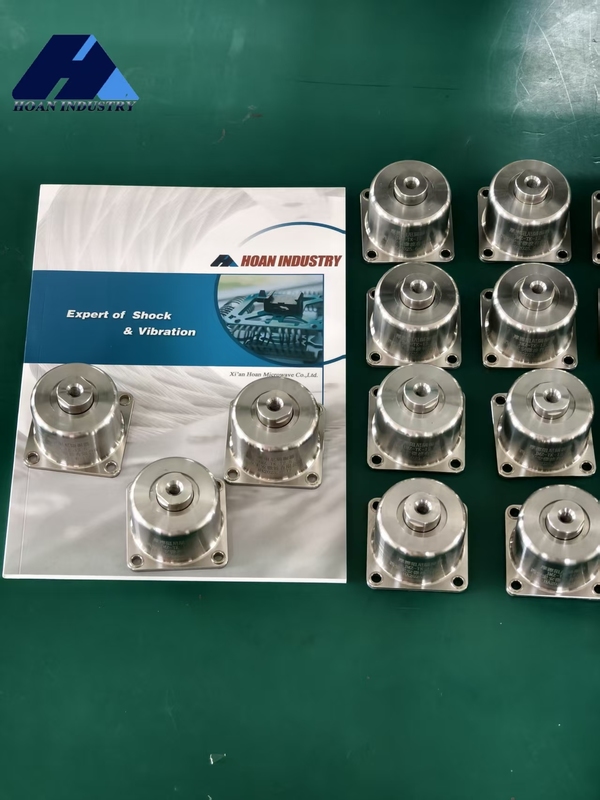

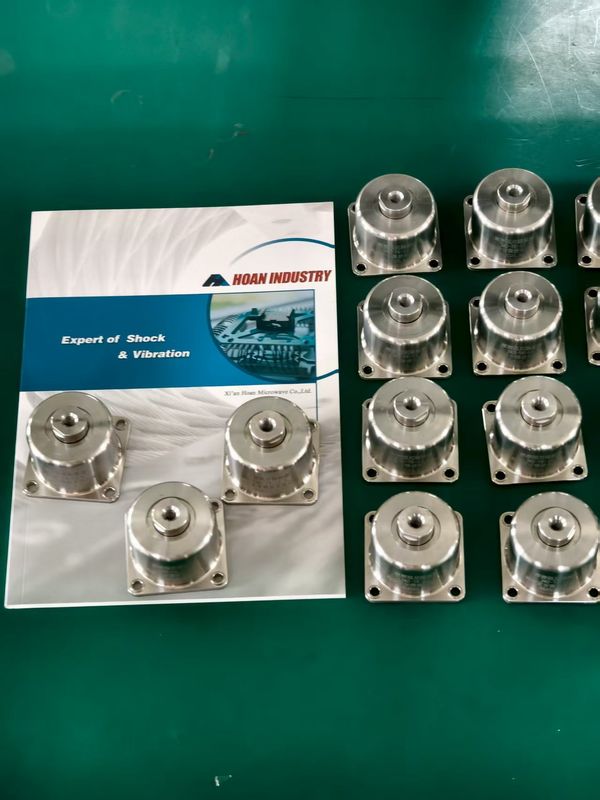

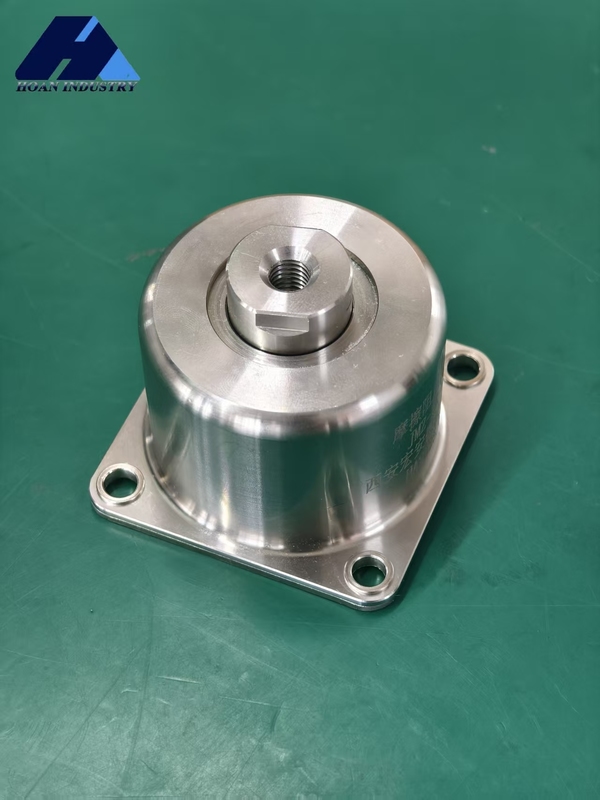

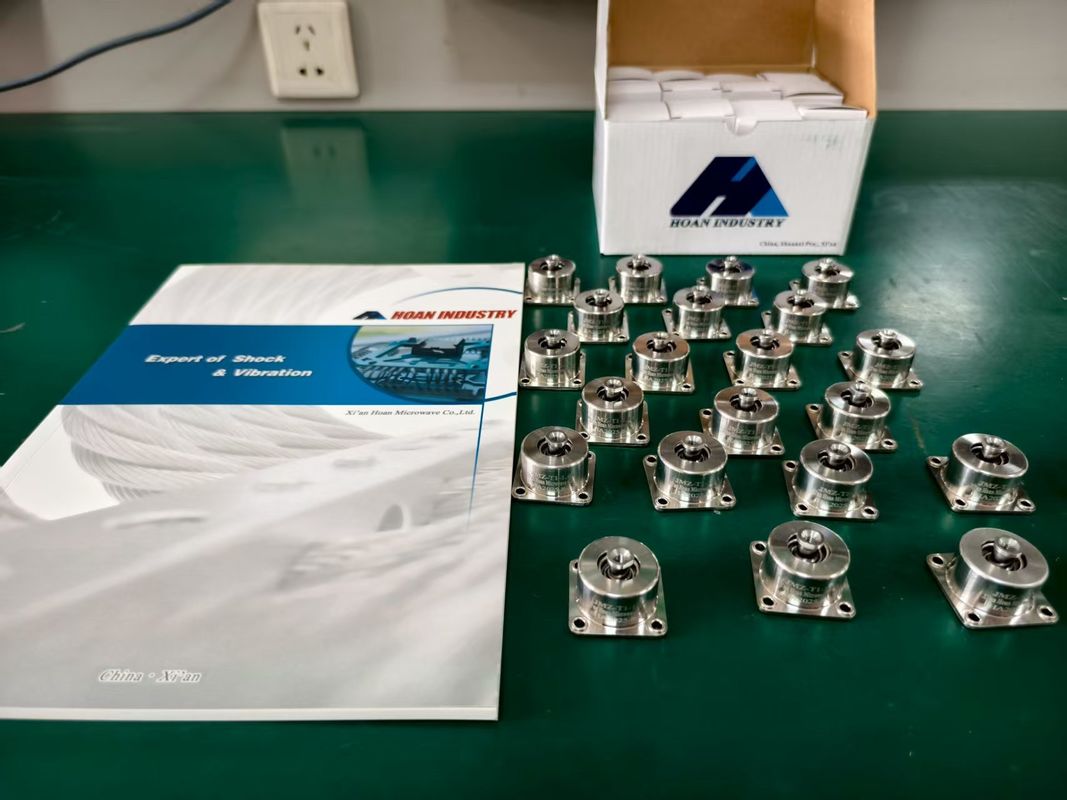

Name: New Product 2025 Spring Isolator JMZ-TK-4A with 58mm Overall Width and 0.25 Inch Deflection for Precision Equipment
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-TK-4A
Availability: InStock

À la maison > produits > Isolateur à ressort >

New Product 2025 Spring Isolator JMZ-TK-4A with 58mm Overall Width and 0.25 Inch Deflection for Precision Equipment

58mm Overall Width Spring Isolator

0.25 Inch Deflection Vibration Isolator

New Product 2025 Friction Damping Isolator

Lieu d'origine:

CHINE

Nom de marque:

Hoan

Numéro de modèle:

JMZ-TK-4A

Nous contacter

Demandez un devis

New Product 2025 Spring Isolator JMZ-TK-4A with 58mm Overall Width and 0.25 Inch Deflection for Precision Equipment

Détails du produit

Matériel:

acier

Absorption des chocs:

Excellent

Disponibilité:

Largement disponible

Caractéristiques:

Durable et facile à installer

Type de montage:

Monture au sol

Réduction du bruit:

Oui

Diamètre:

Varie en fonction de l'application

Structure:

Hélicoïdal

Largeur globale:

58 mm

Déflexion:

0,25 pouce

Type marketing:

Nouveau produit 2025

Condition:

Nouveau

Mots-clés du produit:

Dispositifs d'isolation anti-frottement

Efficacité d'isolement:

95%

Mettre en évidence:

58mm Overall Width Spring Isolator

0.25 Inch Deflection Vibration Isolator

New Product 2025 Friction Damping Isolator

Conditions de paiement et d'expédition

Quantité de commande min

Conditions de paiement

L / C, D / A, D / P, T / T, Western Union, Moneygram

Produits connexes

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

Obtenez le meilleur prix

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

Obtenez le meilleur prix

JMZ-TK-8A Customized Solutions Stainless Steel Spring Isolator with Excellent Shock Absorption and Easy Installation

Obtenez le meilleur prix

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

Obtenez le meilleur prix

Nous contacter

86-29-88292913

Contactez-nous maintenant

Description du produit

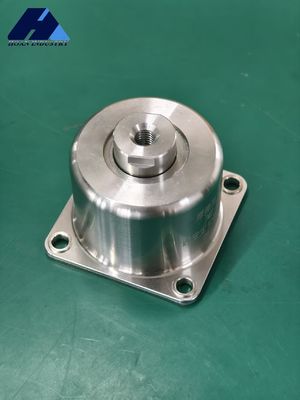

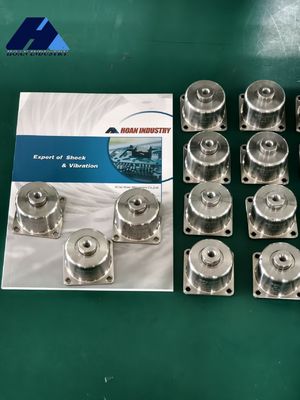

JMZ-TK-4A Vibration Isolator

JMZ-TK Series

JMZ-TK Vibration Isolator: Press the "Silence Button" for Your Precision Equipment
Vibration and impact are invisible threats to precision equipment. The JMZ-TK series friction damping vibration isolators from Xi'an Hoan Microwave Co., Ltd. effectively filter out harmful disturbances from ground micro-vibrations, equipment operation, and environmental factors.

The JMZ-TK isolator utilizes direct friction damping technology, converting mechanical energy into thermal energy through precisely engineered friction pairs. This provides instant response to vibrations with no delay, effectively suppressing disturbances at their source.

The isolator excels in low-frequency vibration control (5Hz to 100Hz), crucial for precision measurement and processing applications. By increasing the system's equivalent damping ratio, it significantly reduces resonance peaks and quickly attenuates low-frequency vibrations, creating a near-stationary reference plane for sensitive equipment.

Ideal for laboratories, metrology centers, astronomical observatories, and high-end manufacturing, the JMZ-TK series provides a fundamental solution for improving data accuracy and process precision in vibration-sensitive environments.

Structural Dimensions

Model	B	M	d	A	C	∅1	∅2	H1	H2
JMZ-TK-2.5A～8A	46	6	4.1	58	20	55	22	36	3.6
JMZ-TK1-25A/40A/50A	63	12	8.2	78	20	70	22	56	6

Technical Parameters

Model	Nominal Load (N)	Load Range (N)	Natural Frequency fn≤(Hz)	Loading Working Height H0±1(mm)	Limit Displacement	Maximum Vibration Transmissibility ηv≤	Impact Resistance Test	Service Life (year)
JMZ-TK-2.5A	25	20～30	33	42	4	3	100G	10
JMZ-TK-4A	40	30～50
JMZ-TK-5A	50	40～60
JMZ-TK-6A	60	50～70
JMZ-TK-8A	80	70～90
JMZ-TK1-25A	250	200～300	20	70	7	3	60G
JMZ-TK1-40A	400	300～480
JMZ-TK1-50A	500	400～600
