Name: JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-0.45
Availability: InStock

À la maison > produits > Isolateur à ressort >

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Up to 95% Isolation Efficiency Friction Damping Vibration Isolator

0-150°F Operating Temperature Spring Isolator

1 Year Warranty Vibration Isolator

Lieu d'origine:

CHINE

Nom de marque:

Hoan

Numéro de modèle:

JMZ-T1-0.45

Nous contacter

Demandez un devis

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Détails du produit

Couleur:

Argent

After Garantie Service:

Assistance en ligne

Orientation de montage:

Verticale

Forme:

Cylindrique

Résilience:

Haut

Température de fonctionnement:

0-150 ° F

Condition:

Nouveau

Réduction du bruit:

Efficace

Matériel:

Acier galvanisé

Garantie:

1 an

Efficacité d'isolement:

Jusqu'à 95%

Durabilité:

Longue durée

Méthode d'installation:

Monté ou intégré

Largeur globale:

32 mm

Personnalisation:

Disponible sur demande

Mettre en évidence:

Up to 95% Isolation Efficiency Friction Damping Vibration Isolator

0-150°F Operating Temperature Spring Isolator

1 Year Warranty Vibration Isolator

Conditions de paiement et d'expédition

Quantité de commande min

Conditions de paiement

Moneygram, Western Union, T / T, D / P, D / A, L / C

Produits connexes

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

Obtenez le meilleur prix

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

Obtenez le meilleur prix

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

Obtenez le meilleur prix

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Obtenez le meilleur prix

Nous contacter

86-29-88292913

Contactez-nous maintenant

Description du produit

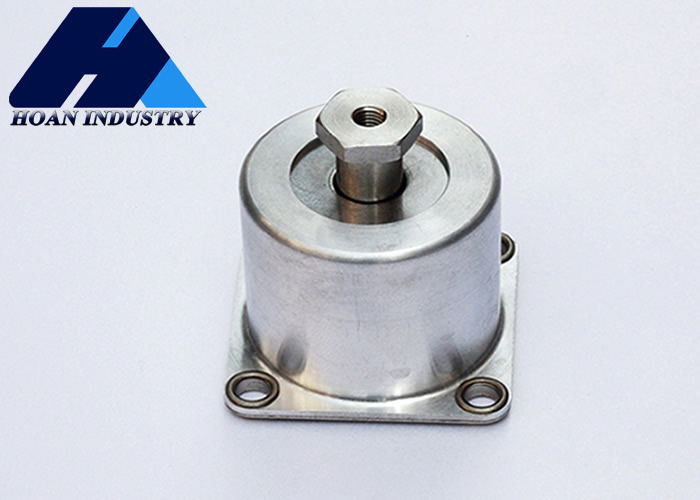

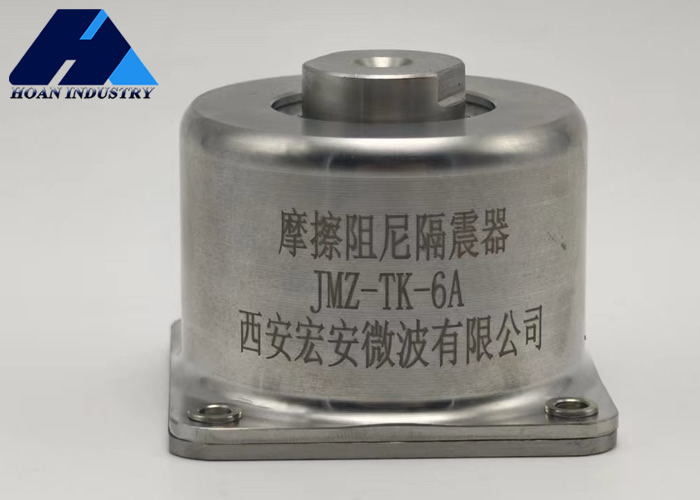

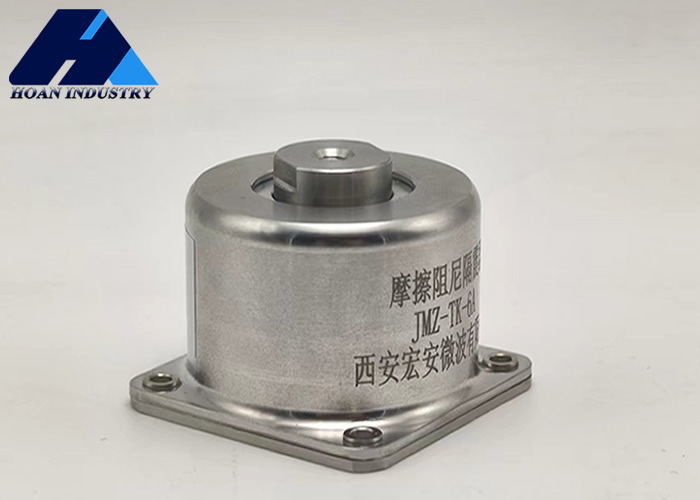

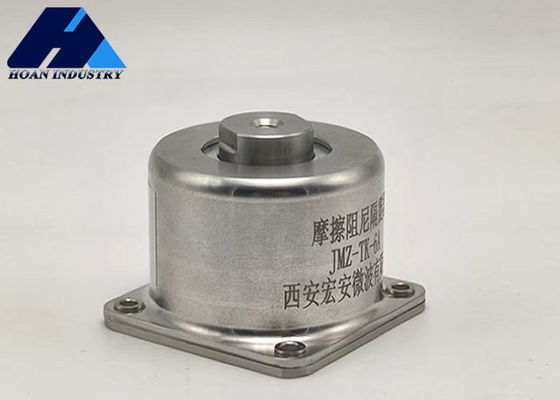

JMZ-T1-0.45 Friction Damping Vibration Isolators

Performance Multiplier for Precision Equipment

The JMZ-T1 Series friction damping vibration isolators from Xi'an Hoan Microwave go beyond basic vibration isolation to become true performance enhancers for your equipment. These isolators provide the environmental stability required for ultra-high-precision applications.

Key Benefits

Extremely low natural frequency for superior vibration isolation
High-efficiency damping reduces vibration interference below theoretical limits
Effectively suppresses self-generated vibrations from internal moving components
Enhances measurement accuracy by an order of magnitude
Improves product yield and shortens R&D cycles

Ideal Applications

Scanning Electron Microscopes (SEMs), Lithography Machines, Atomic Force Microscopes (AFMs), and other precision equipment requiring ultimate stability.

Structural Dimension Diagram

Technical Parameters

Model	Max PZ-Direction Load (kg)	PZ Displacement Under Max Load (mm)	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Frequency (Hz)	Operating Temperature Range (°C)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/ M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Vibration Performance

Impact Performance
